Product Details
＋

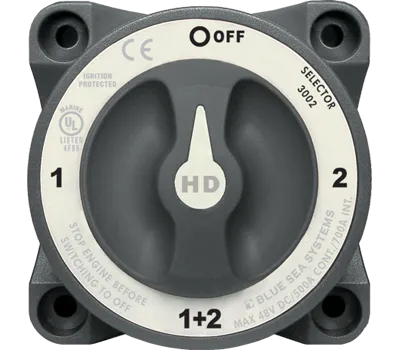

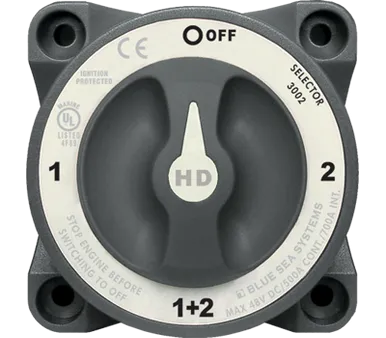

The Blue Sea Systems 3002 switches isolated battery banks to all loads or combines battery banks to all loads (Battery 1 / Battery 2 / Both).
- Rated at 500 amps continuous, for large diesel environments. Ignition protected and safe for installation aboard gasoline powered boats.
- Make-before-break contact design allows switching between battery banks without power interruption.
- Case design allows surface or rear panel mounting.
- Accepts two 4/0 AWG (95mm) battery cables.
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches.
Specifications:
| Model Number: | 3002 |
| Cranking Rating: 10 sec. | 2,750 Amps |
| Cranking Rating: 1 min. | 1,150 Amps |
| Intermittent Rating: 5 min. | 700 Amps |
| Continuous Rating | 500 Amps |
| Maximum Voltage Rating | 32 Volts DC |
| Terminal Stud Size | 1/2"-16 (M12) |
| Terminal Stud Torque | 220 in-lb (24.86 N·m) max. |
| Mounting Holes | Accept 1/4" (M6) Screw |
| Cable Size to Meet Ratings | 4/0 AWG (120mm) |
| Cable Quantity to Meet Ratings | Two Cables / Terminal |
| Cable Clearance For 4/0 AWG Cables | 1.10" (27.9mm) |
| Weight Lb (Kg) | 1.25 (0.57) |
